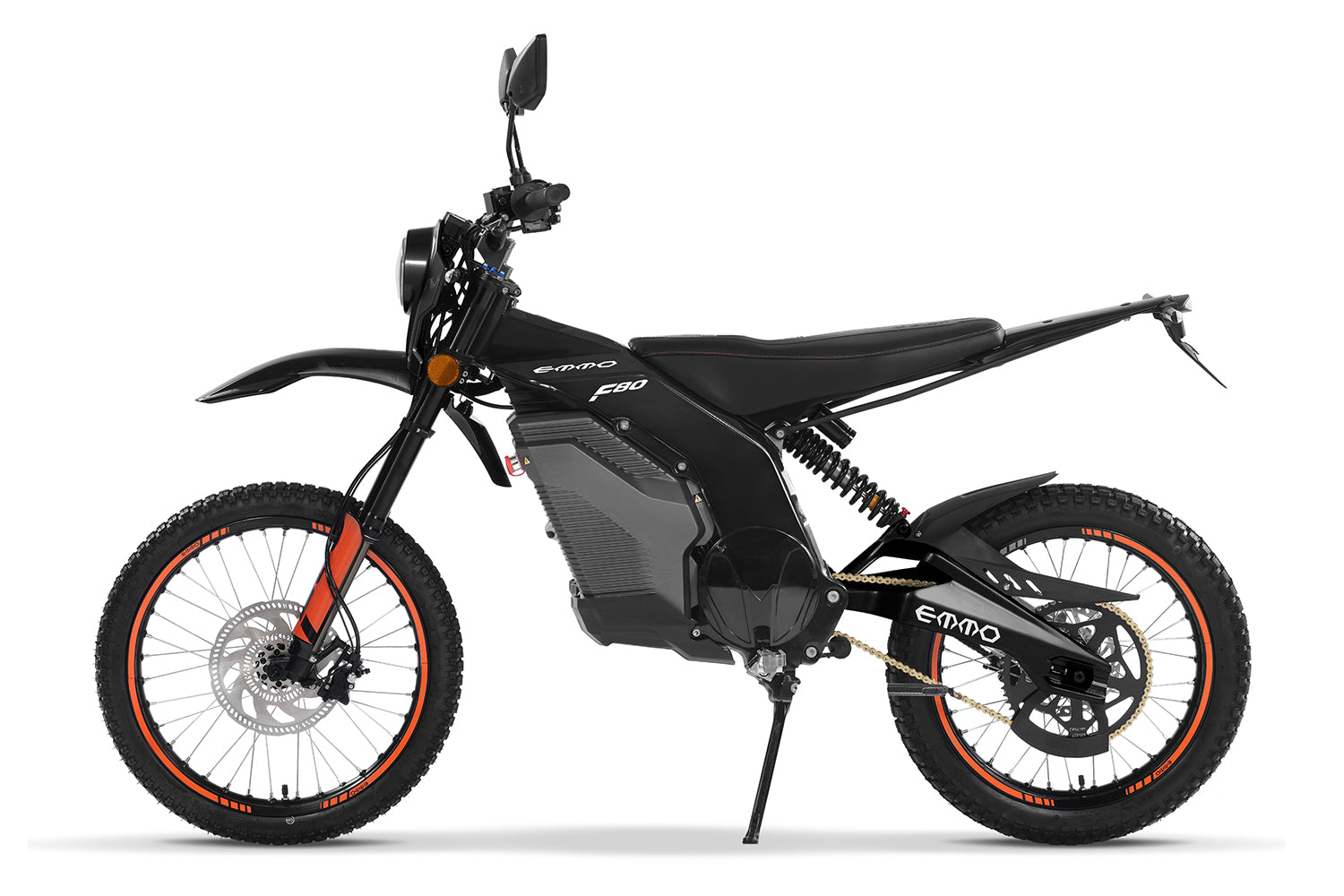

Emmo Caofen Trail F80-DS-30 Dirt Bike

Out of stock
Regular price $5,999.00 CAD

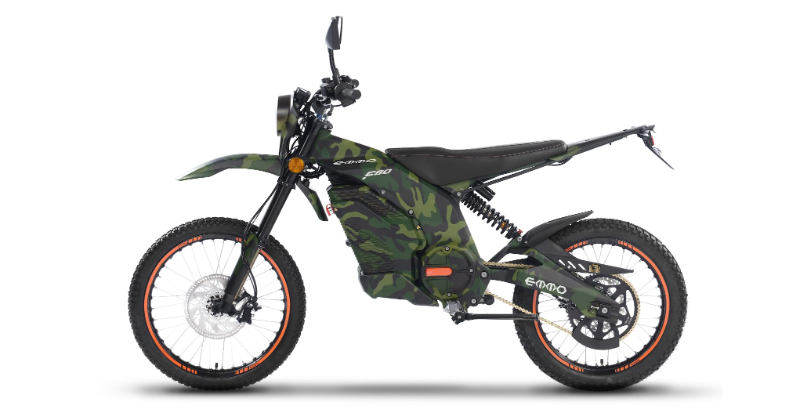

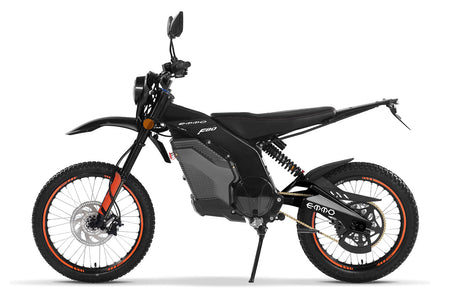

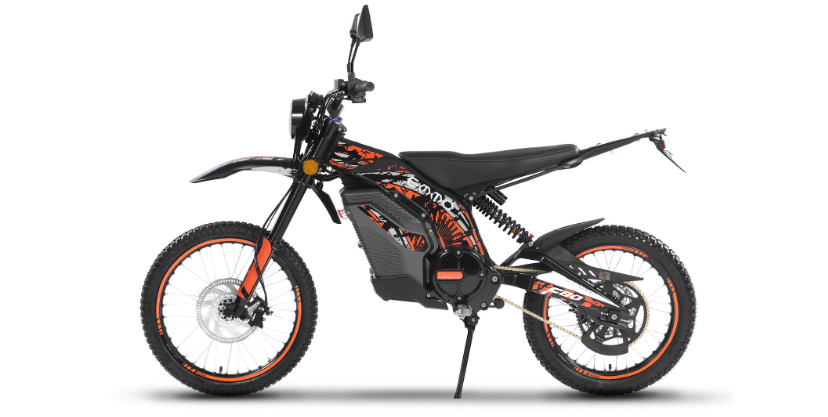

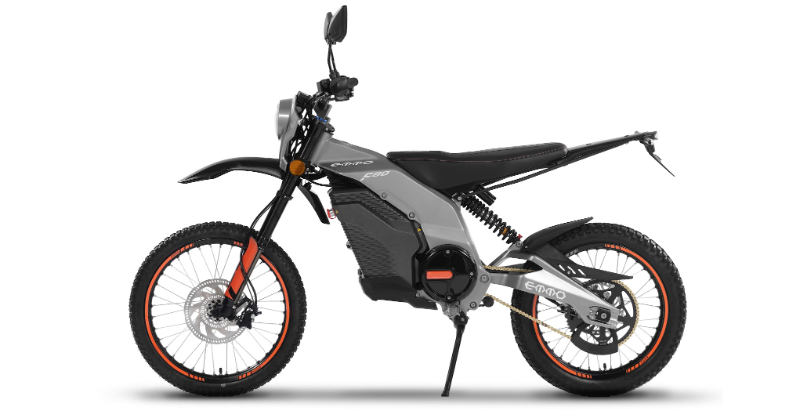

Colour

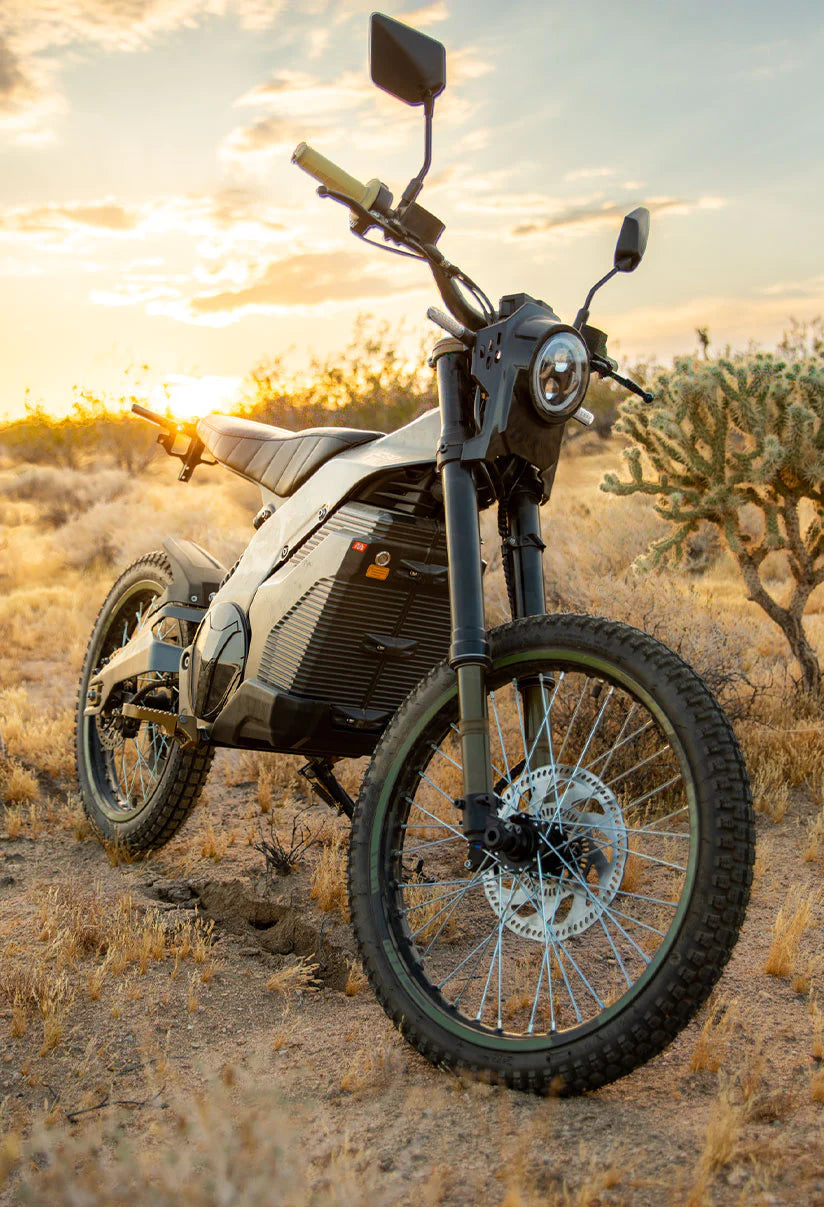

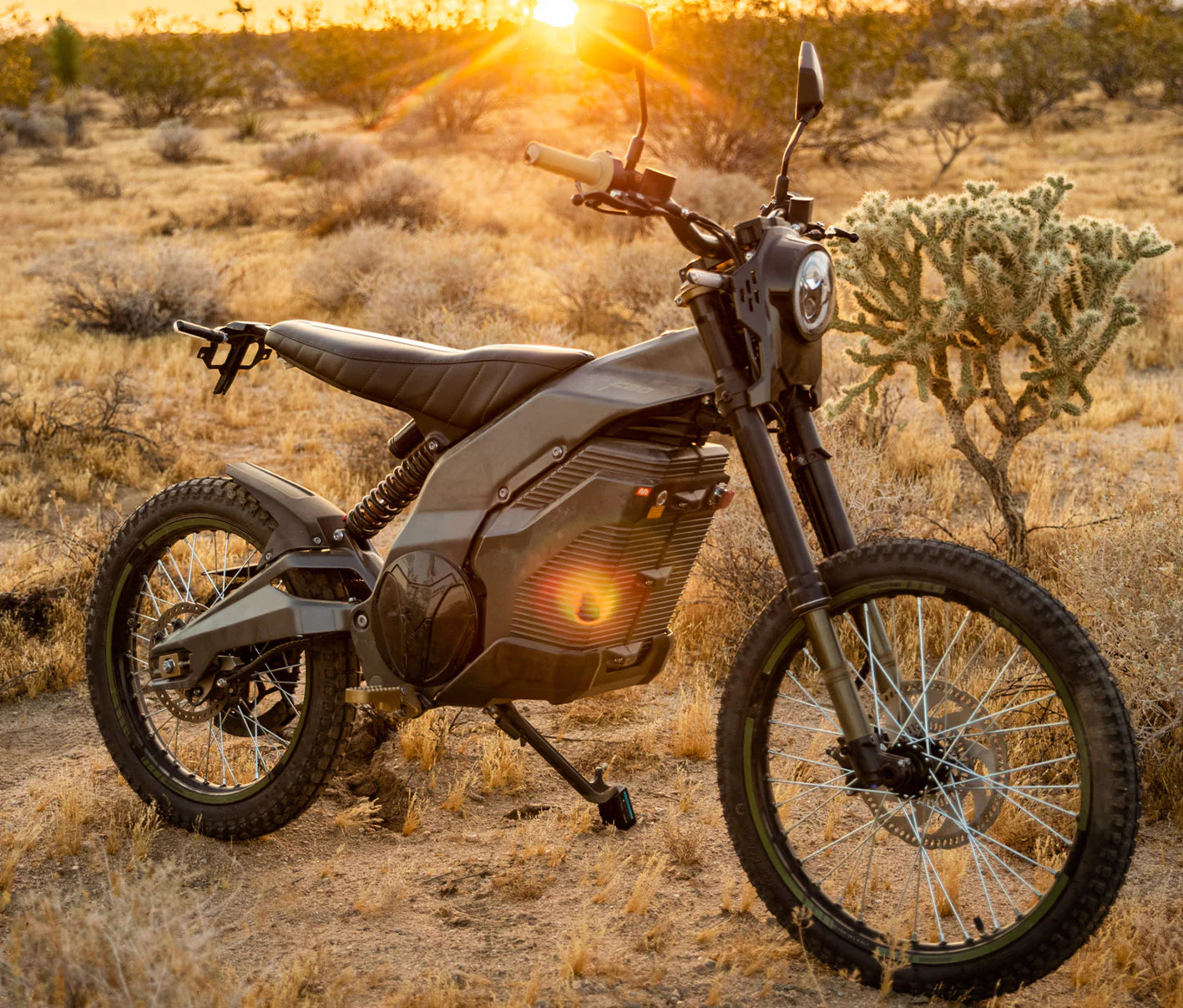

Discover the DS-30, a dirt bike that strikes a perfect balance of performance and comfort, ensuring you're ready for off-road adventures with ease.

Assembly Extra

UL CERTIFIED FAST CHARGER

Elevate your ride with our lightning-fast, reliable charging system, capable of fully recharging your bike in as little as 2 hours, ensuring a day of endless fun. Our UL-certified 10A charging system, complete with a patented heat management system, provides both peace of mind and efficient performance as you power up your bike.

2 Hours - recharging time | 10A - charging output



Unibody
Alloy Frame
Up to 150 km
per Charge



 Aluminum Unibody Frame

Discover the F80's Aluminum Unibody Frame, a high-strength chassis with 30% increased strength thanks to its zero-welding construction, providing exceptional off-road capabilities. With a lightweight design that boosts overall performance and ensures agility, paired with balanced weight distribution for stability on diverse terrains, this unibody frame elevates your riding experience.



8kW
Motor Power
200 mm Travel
Off-Road Suspension



Advanced Battery Temperature Control

The advanced immersive cooling system ensures superior thermal balance, reducing temperature rise by 50% during use. Riding it in the snow? No problem! The battery temperature control system allows for use in extreme cold conditions as low as -40 degrees. With patented technology enhancing battery life and performance, it guarantees worry-free enjoyment for the long journey ahead.

up to 150km - travel range | 50% Longer - Battery Life



72V
Lithium Battery
220 lbs
Load Capacity









Type
Light Off-Road
Motor Type
Permanent Magnet Synchronous Air-Cooled Motor
Rated Power / Peak Power
4kW / 8kW
Peak Torque
260 Nm
Top Speed
85 km/h
Battery
72V/30Ah LiFePO4
Max Range**
80 km (30km/h)
Charging Time
2-3 hours
Climbing Angle
40 Degrees
Riding Modes
3 Speed w/ Boost
Regenerative Braking
YES
Frame
High Strength Unibody Aluminum Alloy Frame
Swingarm
Unibody Aluminum Alloy Swingarm
Front Suspension
HKW 38mm Inverted Telescopic Fork: Adjustable preload and rebound, 200mm travel
Rear Shock Absorber
HKW Direct-Link Monoshock, Adjustable for pre-load and rebound with external reservoir, 85mm travel
Front Wheel
19" wire-spoked rim
Rear Wheel
18" wire-spoked rim
Front Tire
Nylon 2.25-19 Dual-Sport Tires
Rear Tire
Nylon 2.75-18 Dual-Sport Tires
Front Brake
Hydraulic Disc Brake
Rear Brake
Hydraulic Disc Brake
Instrumentation
LCD Digital Speedometer
Ignition Switch
YES
Headlight
DOT LED Headlight w/ high/low beam
Turning Signals
Front & Rear Turning Signals
Taillight & Brake Light
LED Tail Light w/ Brake Light
Fenders
High Mount Front & Rear Mudguard
Rear View Mirrors
YES
Steering Lock
YES
Weight
78KG
Load Capacity
100KG
Vehicle Dimension
195×78.5×107 cm / 77"x31"x42"
Ground Clearance
26.5 cm / 10 2/5"
Wheel Base
130 cm / 51"
Seat Height
84cm / 33"
